Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes
Skip Navigation Links

Optical-Fiber Proof Test & Re-wind Equipment

Bench Model Re-wind Machine to 50m/min

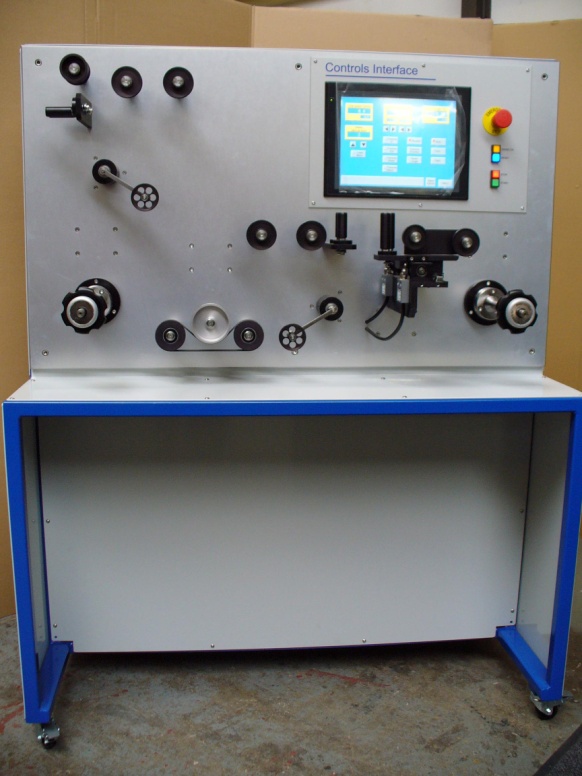

 bench model rewind
  • Line speed 1mm to 50 m/min
  • Fiber Length Accuracy of 0.1% or better
  • Motor Driven Payoff, Capstan, Take Up & Take Up Traverse
  • Take UP pitch 0.125mm to 1mm per rev.
  • Low tension dancer control variable 15g to 200 g.
  • Omron PLC touch screen control
  • Spool Size: 100mm wide x 240mm diameter, 25mm bore.
  • Overall size: 1200mm long x 550mm wide x 1375mm high
  • Optical Fiber Proof Tester with line speed up to 1000m/min

Optical Fiber Proof Tester with line speed up to 1000m/min

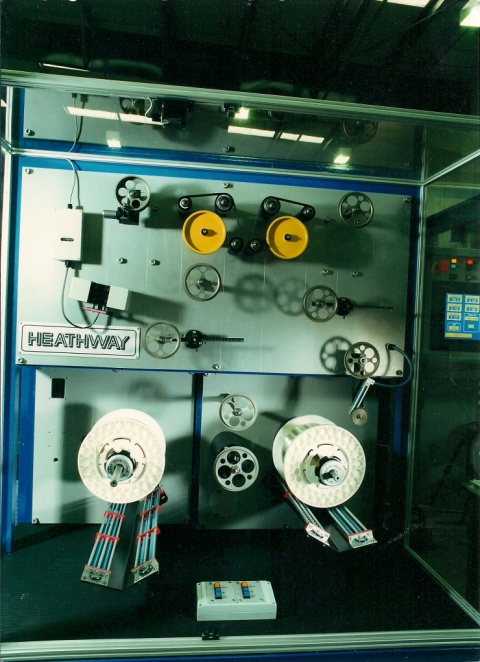

 proof test rewind

Proof Test Re-Wind Machine PTR 200
  • Line Speed 200m/Min Max,Line Speed 200m/Min Max,Line Speed 200m/Min Max,Line Speed 200m/Min Max, Fiber Length Resolution +/- 10mm
  • Motor Driven Payoff , Capstan, Take Up & Spool Traverse
  • Max fiber diameter 400um, Proof Test Length 1000mm
  • Proof Test Level 100 - 5000g
  • Pay-off & Take-up dancer tension variable 50 ~200g
  • Pay-off & Take-up Spool Diameter 150 ~ 380mm, Length 100~320mm
  • Omron PLC touch screen control
  • Overall size: 1568mm long x 1882mm wide x 1893mm high

Proof Test Re-Wind Machine PTR 250
  • Line Speed 250m/Min Max, Line Speed 250m/Min Max, Line Speed 250m/Min Max, Line Speed 250m/Min Max, Fiber Length Resolution +/- 10mm
  • Motor Driven Payoff , Capstan, Take Up & Fiber Traverse
  • Max fiber diameter 400um, Proof Test Length 1000mm
  • Proof Test Level 100 - 5000g
  • Pay-off & Take-up dancer tension variable 50 ~200g
  • Pay-off & Take-up Spool Diameter 150 ~ 250mm, Length 120mm
  • Omron PLC touch screen control
  • Overall size: 1400mm long x 954mm wide x 1938mm high

Proof Test Re-Wind Machine PTR 1000
  • Line Speed 1000m/Min Max,Line Speed 1000m/Min Max,Line Speed 1000m/Min Max,Line Speed 1000m/Min Max, Fiber Length Resolution +/- 10mm
  • Motor Driven Payoff & Traverse , Capstan, Take Up & Traverse
  • Max fiber diameter 400um, Proof Test Length 1600 or 2000mm
  • Proof Test Level 100 - 5000g
  • Pay-off & Take-up dancer tension variable 50 ~200g
  • Pay-off & Take-up Spool Diameter 150 ~ 380mm, Length 100~320mm
  • Omron PLC touch screen control
  • Overall size: 1675mm long x 1875mm wide x 1880mm high
