Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Universal

SY2100

SY2100

SY2100

SY2100

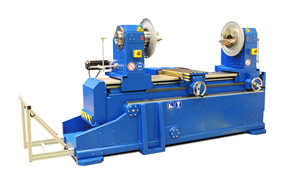

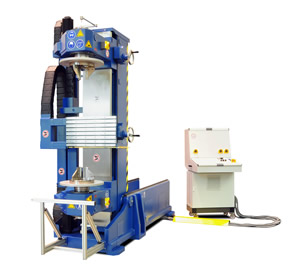

Universal Horizontal/Vertical Lathe “swivel type” with two scroll chucks of 112mm bore, 1600mm between spindle flanges, 450mm above burner carriage, 3-250rpm
