Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Vertical

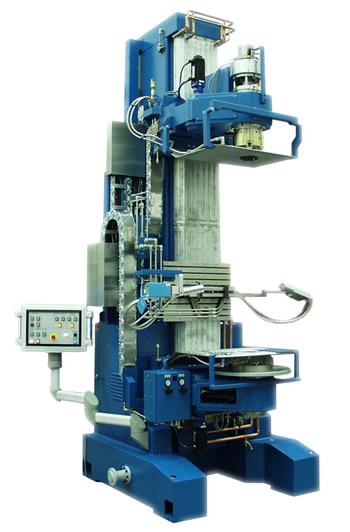

V3160

V3160

Vertical Lathe for over cladding or vertical stretching of Performs with two scroll chucks of 162mm bore, 4100mm between spindle flanges, 600mm above burner carriage, 3-250rpm

Stretching Vertical Brochure
