Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Optical-Fiber Draw Tower & Equipment Upgrades

OPTICAL FIBER DRAW TOWER COMPONENTS

We can upgrade and retrofit your existing Heathway or in house built Fiber Draw Tower with our latest digital control gear. This control system is built around an Omron plc and motion controller. We can supply a SCADA package as the main operator interface along with a data logging system to assist with post draw analysis of the fiber.

The Hardware and Software allows our engineers to access the system via the internet enabling them to resolve issues and carryout minor upgrades without the need for a site visit. We can also upgrade your fire polishing lathe with mfc's which can be interfaced with a pyrometer.

The list of equipment we can upgrade, Interface or supply as a standalone systems is shown below along with photos.
preform spinner unit

Preform Spinner Unit

diameter guage

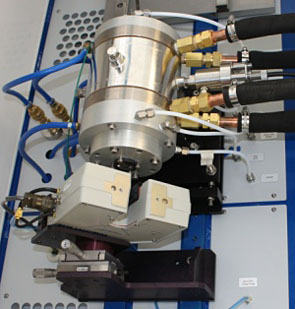

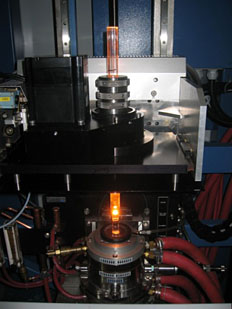

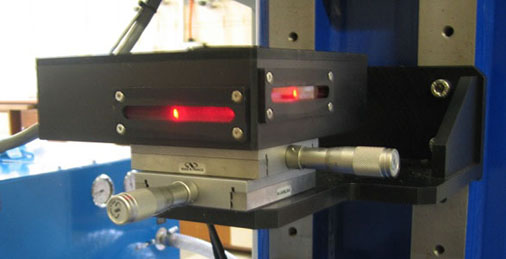

Draw Furnace & Fiber Diameter Gauge

xy preform positioner

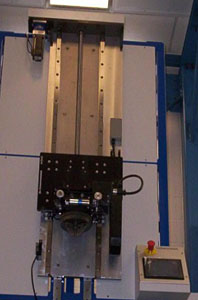

Preform Feed & Automatic
XY Preform Positioner

start-up tractor

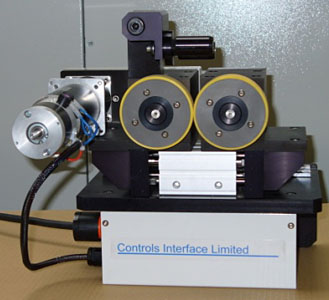

Start- Up Tractor


belt and pinch wheel tractor belt and pinch wheel cutter

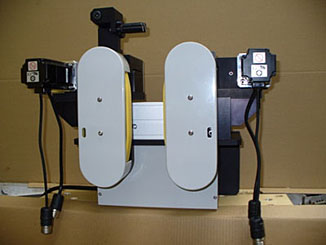

Belt & Pinch Wheel Tractor and Cutters

pressurized coating system

Pressurized Coating Systems

split coating system

Split coating system

concentricity monitor

Concentricity Monitor

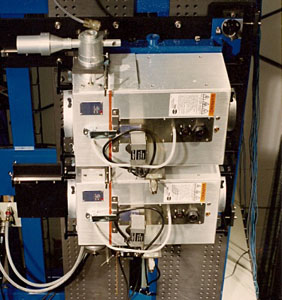

uv curing system uv curing system

UV Curing System

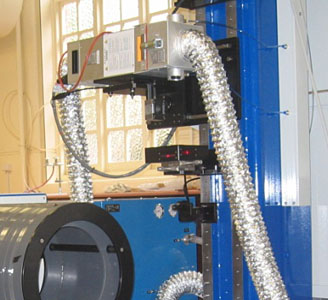

thermal curing oven

Thermal Curing Oven

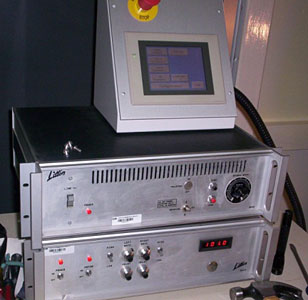

ftm500 tension monitor

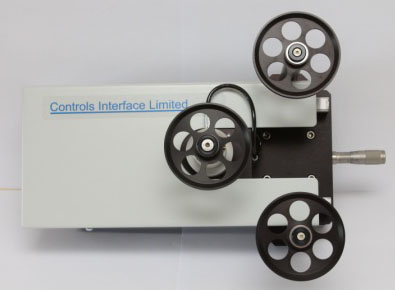

FTM500 Fiber Tension Monitor

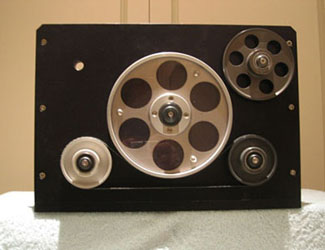

capstan wheel

Capstan 500mm wheel

capstan wheel

Capstan 250mm wheel

drum winder with guarding

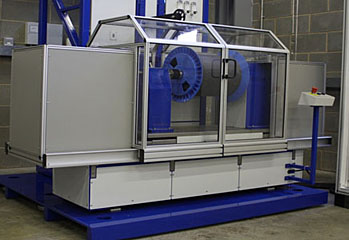

Drum Winder with Guarding

drum winder with dancer

Drum winder Single Ended Support with Dancer

fire polishing lathe control gear fire polishing lathe control gear

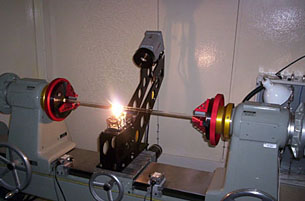

Fire Polishing Lathe & Control Gear

electrical controls cabinets electrical controls cabinets

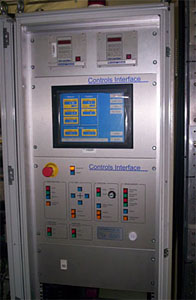

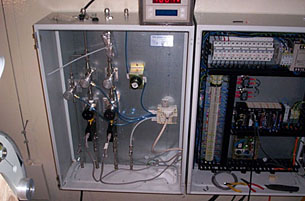

Electrical Controls Cabinets for Towers and Lathes
