Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Optical-Fiber Draw Towers

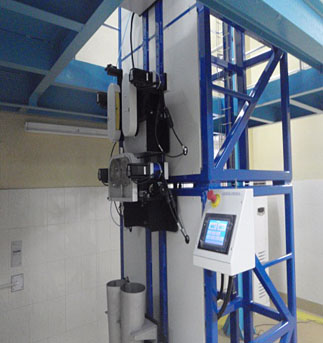

draw tower
draw tower
draw tower

We have supplied Draw Towers from 9 meters tall to as small as 3 meters in height with equipment supplied on them to include the following:

  • Fiber Optic Draw Tower Structures
  • Preform Feeds .5 to 2.5 Meter Stroke
  • Automatic Preform Positioner
  • Preform Scroll Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Preform Draw Furnace temperatures from 200 to 2200 degree C
  • Rod & Fiber Diameter Measurement Gauges
  • Fiber Start-Up Tractor
  • Belt and Pinch Wheel Tractors for Cane Pulling
  • Solid & Split Pressurized Coating Systems
  • Gravity Fed Coating System
  • Fusion Variable Power UV Curing System
  • GCF Thermal Curing Oven
  • Fiber Coating Concentricity Monitor
  • Fiber Draw Tension Monitoring
  • Take-Up Capstan with diameters up to 500mm
  • Fiber Take Up with Mechanical and Optical Dancers or Torque Control
  • Tower Control System with SCADA Package
  • Clean Air Boxes

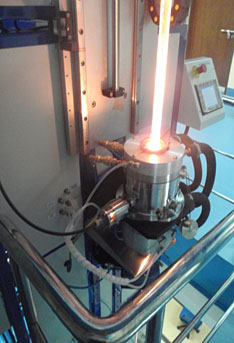

centorr furnace

CENTORR Furnace

belt puller cuter collection system

Belt Puller with Cutter and collection system

dancer drum winder

Dancer and Drum Winder

transfer system dual furnace

Transfer System for dual furnaces

split pressure coating system

Split Pressure coating System
