Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Glass Working Equipment - Arnold Gruppe

Arnold Lathes - Product Brochure

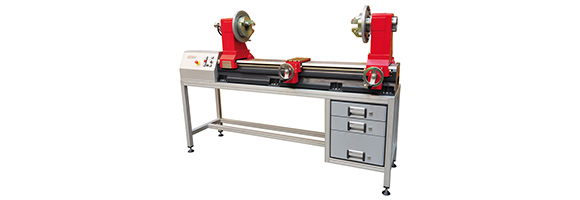

Glassworking Lathes:

Photo 1060



GLASSWORKING - Cut off Machines:

glass working HT6_untergestell.jpg

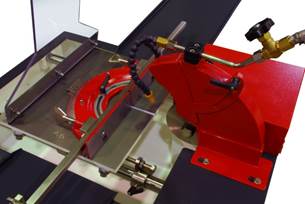

HT6 – BSP  Universal-cutting machine - table model

Technical data:  Cutting wheel diameter 150 mm, Flange Diameter 75 mm, Table size 270 x 127 mm, Table Travel 210 mm, Voltage 200 - 240 volts, 50 -60 cycles, 1 phase 0,5 kW

72 Niro frei.jpg 72 Niro Detail.jpg

72 NIRO Universal-Cutting-Saw

For cutting glass, quartz glass, porcelain, ceramics and similar materials.

Technical data:  Cutting wheel diameter 250 or 300 mm, Flange Diameter 100 mm, Table size 350 mm wide x 320 mm deep, Table Travel 170 mm, Voltage 200 - 240 volts, 50 -60 cycles 1 phase 0,5 kW

Standard Accessories: Water pump with water clearing vessel made of stainless steel, located in the machine base, can be taken out from the side, water collecting sheets, longitudinal stop, for use on le􀅌 or right side

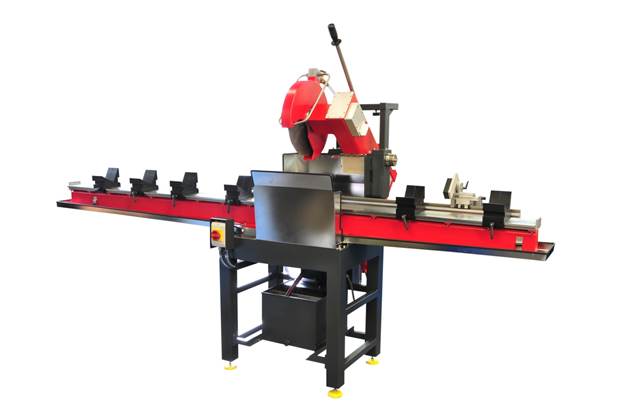

72/330 NIRO Universal-Cutting-Saw - large model

Technical data:  Cutting wheel diameter 350 or 400 mm, Flange Diameter 100 mm, Table size 515 mm wide x 720 mm deep, Table Travel 400 mm, Voltage 200 - 240 volts, 50 -60 cycles 3 phase 2,2 kW

glastrennmaschine_71_08_10 rg.jpg MAX_1887.JPG

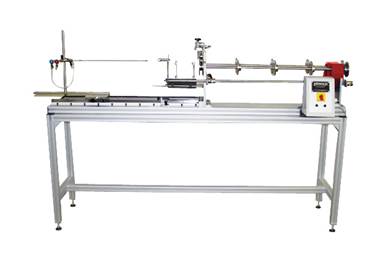

71/8.10 Glass tube cracking-off machine - manually operated

The universal model with reliable cracking-off system – suitable for soda glass, lead glass and borosilicate glass.

Technical data:  Glass tube diameter: 8 – 150 mm, Cutting lengths: 20 – 400 mm, Upon request the machine can be delivered as a special larger diameters up to 350 mm and longer cuts up to 800 mm.

Dsc_1161frei.jpg DSC_1146.jpg

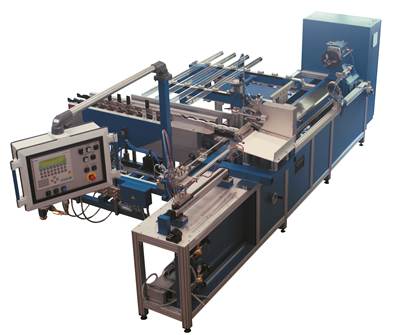

71/61 Glass tube cracking-off machine

Fully automatic cracking-off machine of cat. no. 71/8 for cracking-off soda glass, lead glass and borosilicate glass of diameter of 15 mm – 150 mm

Arnold Cut-Off Machine Catalog
