Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Glassworking Burners

Arnold Burners - Product Brochure

Quartz

141_18.jpg P5170009.JPG 14_18_60_1.jpg

Surface Mix Quartz Burners, available with either 3, 4, 5,6 burners heads,  each head has 7 jets.

141_245.JPG ansetzmaschinen01.jpg ansetzmaschinen02.jpg

Surface Mix Quartz Burner, 40mm diameter head with 3 jets, shown as cross head set up on Lathe with Stainless Steel protection shields.

141_18_80.JPG 141_18_70.JPG

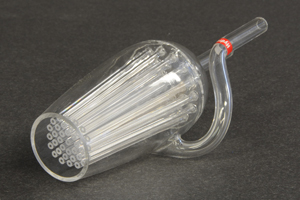

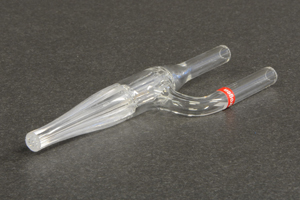

Surface Mix Quartz Burner, 29mm diameter head with 37 jets
Surface Mix Quartz Burner, 10mm diameter head with 3 jets????

Stainless Steel

  • Stainless Steel Machine burner, surface Mix with 3 rows of jets, Head dimension of 40mm x 20mm with 20 jets.
  • Stainless Steel Machine burner, surface Mix with 3 rows of jets, Head dimension of 54mm x 20mm with 26 jets.
  • Stainless Steel Machine burner, surface Mix with 3 rows of jets, Head dimension of 38mm x 20mm with 38 jets.

140_29_Bild1.jpg 140_29_Bild3.jpg

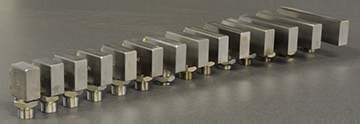

Stainless Steel premix Burners, 4 rows of jets with flame lengths from 20mm to 130mm, overall lengths from 31mm to 141mm


Cross fire, surface mix "ZENIT" Burners with either 40mm or 50mm burner head diameter

141_41 Flamme.jpg

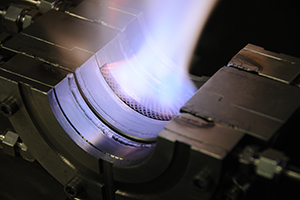

Half Ring, Water Cooled Surface Mix Stainless Steel Heathway Style Preform Burner, with Nitrogen Curtains,  available in 70mm or 90mm

DSC_2960.JPG freigestellt.jpg

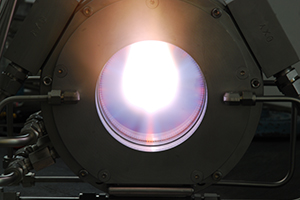

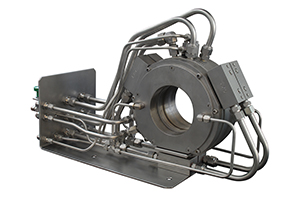

Full Ring Water Cooled Stainless Steel surface mix burner available in either 90mm or 110mm diameters

*Quartz
*Stainless Steel
