Tower Components:

  • Preform Feed .5 to 2.5 meter stroke
  • Manual or Automatic XY Preform Positioner
  • Preform Chuck
  • Preform Rotation
  • Preform Pressurization for Photonic Crystal Fibers
  • Draw Furnace with Temperatures Ranging from 200 to 2200 Degree C
  • Fiber & Cane Diameter Gauges
  • Start-Up Tractor
  • Belt & Pinch Wheel Tractors for Cane
  • Cane Cutters and Collection Systems
  • Pressurized Coating Systems
  • Gravity Fed Split Die Coating System
  • Fusion Variable Power UV Curing System
  • Thermal Curing Oven
  • Concentricity Monitor
  • Tension Monitoring
  • Capstans to 500mm Diameter
  • Drum Winder with Mechanical and Optical Dancers or Torque Control
  • Control System with SCADA Package
  • Class 100 Clean Air Boxes

Horizontal

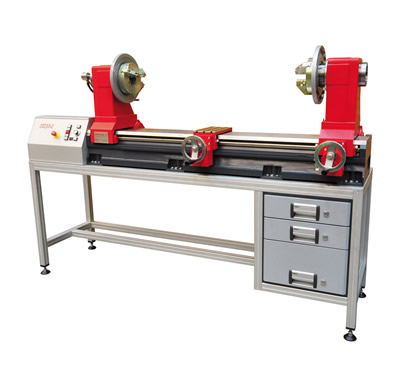

1060

1060

1060 Detail 1

1060 Detail 1

1060 Detail 2

1060 Detail 2

Bench Lathe with two scroll chucks of 60mm bore, 1000mm between spindle flanges, 810mm between chucks tips, 360mm above burner carriage, 1-300rpm.

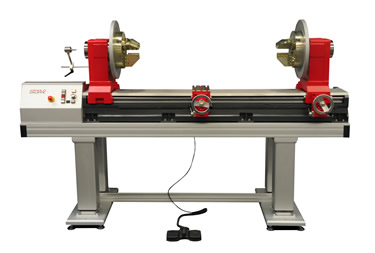

1080H

1080H

1080H Detail

1080H Detail

Bench Lathe with two scroll chucks of 82mm bore, 1250mm between spindle flanges, 960mm between chucks tips, 250mm above burner carriage, 1-180rpm.

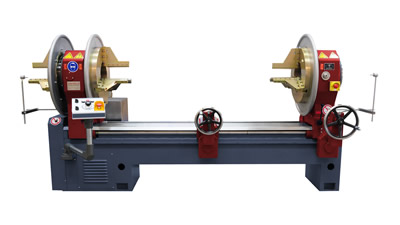

Slim 3260

Slim 3260

Floor Model Slim Style Heathway Lathe with three scroll chucks of 262mm bore, 1800mm between spindle flanges, 450mm above burner carriage, 1-150rpm

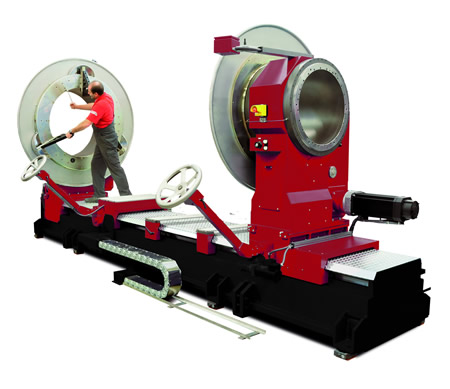

SYP 31000

SYP 31000

Large Bore Lathe for production of tubing for the semiconductor market, with one scroll chucks of 1000mm bore, and one scroll chuck with 600mm borer, 3000mm between spindle flanges, 1000mm above burner carriage, 1-60rpm, (Spindle for available from Ø= 600-1000mm)

SYPF Lathe Brochure

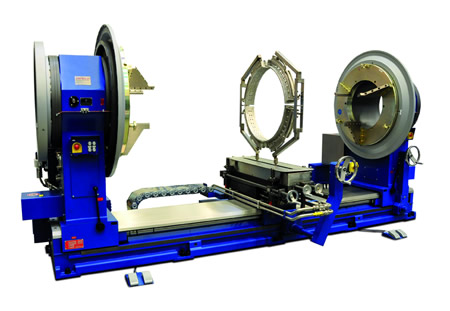

3600

3600

Large Bore Lathe for production of tubing for the semiconductor market, two scroll chucks of 605mm bore, 3200mm between spindle flanges, 1000mm above burner carriage, 1-80rpm (Spindle Bore available Ø= 260-600mm)

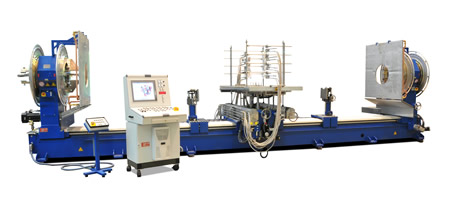

SY3500

SY3500

Resizing Lathe with four scroll chucks of 504mm bore, 7000mm between spindle flanges, 1000mm above burner carriage, 2-200rpm, burner-gas control, calibrating unit

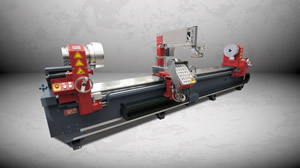

NC56 100

NC56 100

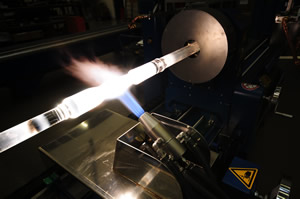

Max 3648

Max 3648

VAD Core rod precision stretching lathe with two scroll chucks of 100mm bore, 4000mm between spindle flanges, with diameter gauge for sizing of tubing

Stretching Horizontal Brochure
